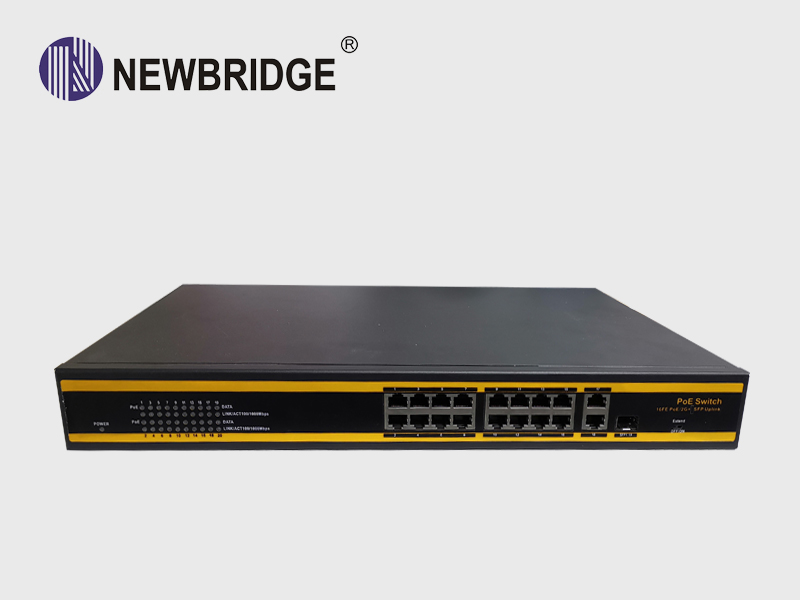

ND1P1603FGX

 Click on the picture to enter the Gallery
1、16*10/100Mbps PoE ports, 2*10/100/1000Mbps uplink port,1 1000M SFP combo
2、 Support IEEE802.3af/at
3、 Support restrain  network  storm, VLAN function
4、 Support Max Transmission distance up to 250m with PoE Power
5、All port supported by MDI/MDIX auto flip and self-negotiation
6、Built-in power supply;
7、Maximum power of single PoE port: 30 W;
8、Maximum PoE power: 250W;
9、 Adopts store-and-forward architecture;
10、 Fanless, natural cooling, small,compact and quiet design, suitable for desktop or wall
11、Support lightning protection 6000V


Item Description
Power Power Adapter Voltage AC 110V-240V
Consumption 250W(52V.4.8A)



Network Connector

Network Port
POE Ethernet Port 1~16 Port : 10/100Mbps
Ethernet port Uplink Port : 10/100/1000Mbps

SFP Port

SFP Port: 10/100/1000Mbps

Transmission Distance
1~16 Port : 100Mbps:0~100m;
10Mbps: 0~250m;
Uplink Port : 0 ~ 100m

SFP: depends on the optical  module
Transmission Medium Cat5/5e/6 standard network cable


Network Switch
Network Standard IEEE802.3/802.3u
IEEE802.3xIEEE802.ab
Switching Capacity 7.6Gbps
Packet buffer memory                 1Mbits
Throughput 5.6544Mpbs
MAC Table 2K

Paket Forwarding Rate
10Mbps:14880pps/port
100Mbps:148800pps/port
1000Mbps:1488000pps/port

Power Over Ethernet
PoE Standard IEEE 802.3af/at
PoE Power Supply End-Span(1/2+;3/6-)
PoE Power af=15.4Wat=30W

RJ45 port


Port Function
Power priority mechanism fast and forward MAC automatic learning and aging IEEE802.3X Full-duplex and mode and backpressure for Half-duplex mode

LED Indicator

LED Indicator
link/ACT.100Mbps;PoE Status Indicator; Power indicator;Extender

Environmental
Working temperature 0℃~55℃
Relative Humidity 20~95%
Storage temperature -20℃~70℃

Mechanical
Dimension (L×W×H) 440mm*285mm*55mm
Color Black
Weight 4.2Kg
