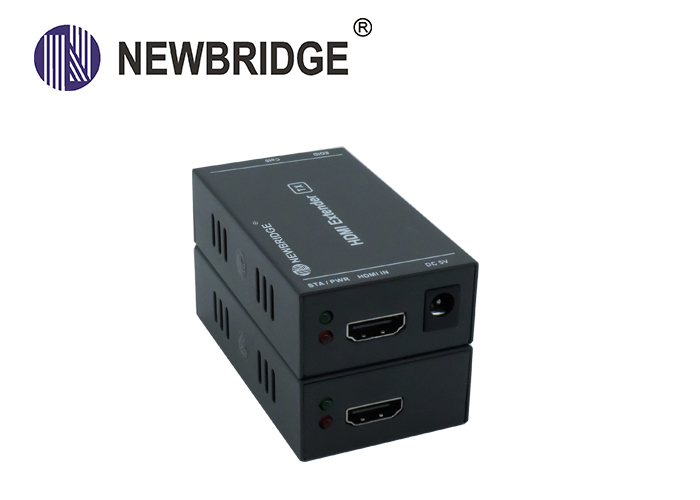

ND8110HE-60

 Click on the picture to enter the Gallery
Feature:
1.Transmits HDMI video and audio signals up to 60M over a single CAT6 cable;
2.Support video resolution up to 1920*1200@60Hz, 3D signal
3.Support copy EDID function, can match many kind display device;
4.Compliance with HDMI 1.3 and HDCP 1.2 standard
5.High compatibility, can auto-match source and display device;
6.Built-in automatic adjustment system, make the image smooth, clear and stable;
7..Built-in ESD protection system, Simple to install, plug and play

Port name Description
INPUT/OUTPUT HDMI signal input/output
Cat5e/6 RJ45 port connect cat5e/6.
DC5-15V Power adapter socket
EDID EDID button, press 3 second to copy EDID form displayer that connect TX INPUT port.
LED indicator Description
POWER System power indicator
STATUS Video signal indicator.
Copy EDID indicator



Parameter Description
Video Standards HDMI 1.3; HDCP 1.2
  Maximum pixel clock 165MHz
  Maximum data rate 6.75Gbps
  Maximum resolution 1920*1200@60Hz
  Connector HDMI-A
  Impedance 100Ω
UTP Interface RJ45
  Transmission distance CAT6-60M
Other Power supply The power adapter: DC 5-15V
  Power dissipation MAX 3W
  Temperature Operating: -5℃ ~ +70℃
  Humidity Operating: 5% ~ 90%
  Dimension 94.5*71*26mm
  The warranty 1 year free warranty

HDMI extender60mHDMI 1.3; HDCP 1.25V1A/DC,up to 1920*1080/60Hz
