ND2P-2FX4TX-SC

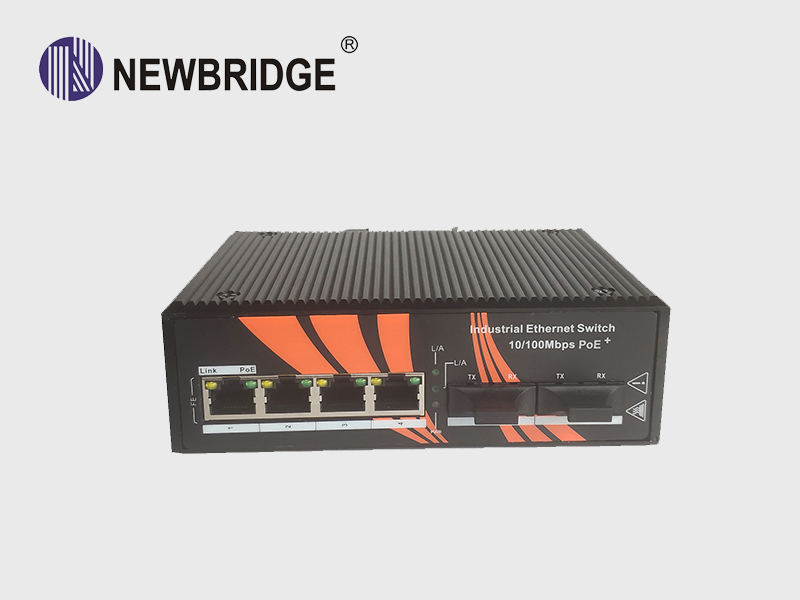

 Click on the picture to enter the Gallery

1. Overview
Newbridge®ND2P-2FX4TX-SC Industrial PoE Fiber switch, 4 Port 10/100Mbps PoE ports and 2 port 100Mbps SC Fiber port,for connecting with devices like computer, switch, hub, server, etc, as well as powering network camera, industrial VoIP phone, wireless AP and other PoE supported devices. Specially designed for harsh outdoor applications. Its 3KV network port surge protection and 6KV port Lightning protection can adapt to harsh outdoor environment and ensure the reliability of the uninterrupted PoE system. Power input also chooses industry- standard types of power.



Product Name
4 Port 10/100M Industrial PoE Fiber Switch
Product Model ND2P-2FX4TX-SC
Interface 4x10/100Base-T PoE port + 2x 100Mbps SC optical port

Network Protocols
IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;IEEE802.3u;100Base-TX/FX; IEEE802.3ab 100Base-T; IEEE802.3z 100Base-X; IEEE802.3x; IEEE802.3af,IEEE802.3at




PoE Specification
PoE Standard: IEEE802.3af/ IEEE802.3at
PoE ports: 4 port support PoE
Power Output:
Max. 15.4 watts (IEEE 802.3af)
Max. 30 watts (IEEE 802.3at)
PoE port Auto detect AF/AT devices
Output Voltage: DC48-57V
Power Pin Assignment:1/2+;3/6-
Power Type: End-span( Mid-span optional)

Network Media
10BASE-T: Cat3,4,5 UTP(≤100 meter)
100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-TX: Cat6 or later UTP(≤100 meter)
Fiber Media Multi-mode: 2KM
Single-mode: 20/40/60/80KM
Inferface:2*SC

Performance Specification
Bandwidth: 1.2Gbps
Packet Buffer Memory:512K
10 Mbps Packet Forwarding Rate:14880 pps/port
100Mbps Packet Forwarfding Rate:148800 pps/port
MAC Address Table: 1K
Forwarding Mode Store-and-Forward
Protection 6KV Lightening protection, IP40 protection
LED Indicators Power: PWR; Link; PoE; Link/Act


Power Supply
Input Power: 48~57VDC (Terminal Block)
Input Power:2* 48~57VDC(Dual power redundancy backup)
Working Consumption : <5W
Connectors : Phoenix terminal
Overload protection :20A
Reverse polarity protection : 30s
Alarm contact : No
Other Specifications

Working Environment
Working temperature: -40~+85℃ ;
Storage temperature: -45~+85℃
Relative Humidity: 5%~95 %( no condensation)



Industry Standard
FCC CFR47 Part 15,EN55022/CISPR22,
Class A EMS:
IEC6100-4-2 (ESD): ±8kV (contact), ±15kV (air)
IEC6100-4-3 (RS): 10V/m (80MHz-2GHz)
IEC6100-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV
IEC6100-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV IEC6100-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz)
IEC6100-4-16 (Common mode conduction): 30V (cont.), 300V (1s)
IEC (EN) 61000-4-8:support
IEC 60068-2-27(Shock):support
IEC 60068-2-32(Freefall):support
IEC 60068-2-6(Vibration):support
Shell IP40 protect grade, metal shell
Installation DIN-Rail or Wall mounts

Packing List
1×Industrial PoE Switch (plus terminal block)
1×User Manual/Certificate of quality/Warranty card
1×DIN-Rail mounting kit

Certification
CE mark, commercial;
FCC Part 15 Class B;
VCCI Class B
EN 55022 (CISPR 22), Class B
MTBF 300,000 hours
Weight & Size Product Weight: 0.6KG
Product size (L×W×H): 143mm× 101mm× 44mm
Warranty 3-years

4*10/100 Base-Tx Non-managed PoE Fiber Switch,2*100M SC port ,Industrial , aluminum alloy, DIN Rail, DC48~57V power supply ,Wide temperature (-40°C-85°C),CE-FCC-RoHS - DC power supply is not included by default.
