1. Overview

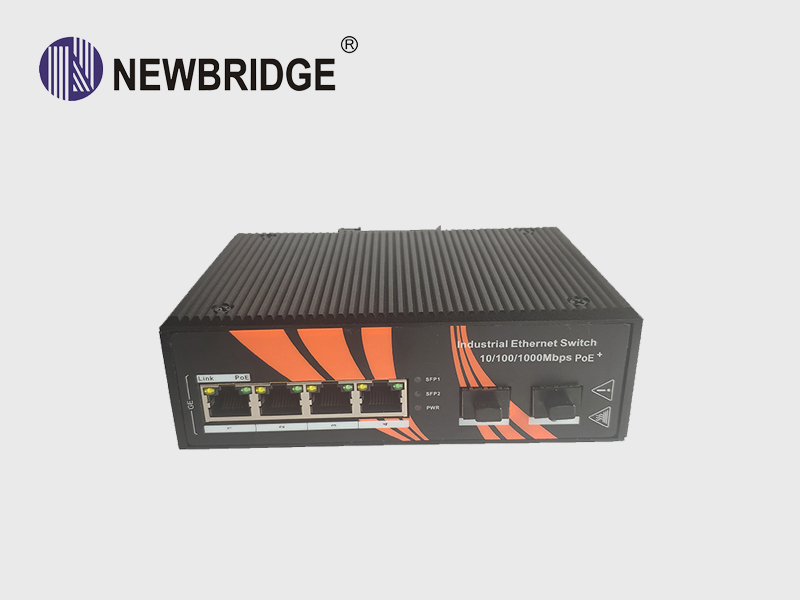

Newbridge®ND2PG-2FX4TX-SFP Industrial PoE Fiber switch, 4 Port 10/100/1000Mbps PoE ports and 2 port 1000Mbps SFP slot,for connecting with devices like computer, switch, hub, server, etc, as well as powering network camera, industrial VoIP phone, wireless AP and other PoE supported devices. Specially designed for harsh outdoor applications. Its 3KV network port surge protection and 6KV port Lightning protection can adapt to harsh outdoor environment and ensure the reliability of the uninterrupted PoE system. Power input also chooses industry- standard types of power.
|
Product Name |
4 Port 10/100/1000M Industrial PoE Fiber Switch |
| Product Model | ND2PG-2FX4TX-SFP |
| Interface | 4x10/100/1000Base-T PoE port + 2x 1000M SFP slot |
|
Network Protocols |
IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;IEEE802.3u;100Base-TX/FX; IEEE802.3ab 100Base-T; IEEE802.3z 100Base-X; IEEE802.3x; IEEE802.3af,IEEE802.3at |
|
PoE Specification |
PoE Standard: IEEE802.3af/ IEEE802.3at |
| PoE ports: 4 port support PoE | |
|
Power Output: Max. 15.4 watts (IEEE 802.3af) Max. 30 watts (IEEE 802.3at) |
|
| PoE port Auto detect AF/AT devices | |
| Output Voltage: DC48-57V | |
| Power Pin Assignment:1/2+;3/6- | |
| Power Type: End-span( Mid-span optional) | |
|
Network Media |
10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-TX: Cat6 or later UTP(≤100 meter) |
| Fiber Media |
Multi-mode: 2KM Single-mode: 20/40/60/80KM Interface:2*SFP |
|
Performance Specification |
Bandwidth: 16Gbps Packet Buffer Memory:1M 10 Mbps Packet Forwarding Rate：14880 pps/port 100Mbps Packet Forwarfding Rate:148800 pps/port 1000Mbps Packet Forwarfding Rate:1488000 pps/port MAC Address Table: 8K |
| Forwarding Mode | Store-and-Forward |
| Protection | 6KV Lightening protection, IP40 protection |
| LED Indicators | Power: PWR; Link; PoE; Link/Act |
|
Power Supply |
Input Power: 48~57VDC (Terminal Block) Input Power:2* 48~57VDC(Dual power redundancy backup) Working Consumption : <5W Connectors : Phoenix terminal Overload protection :20A Reverse polarity protection : 30s Alarm contact : No |
| Other Specifications | |
|
Working Environment |
Working temperature: -40～+85℃ ; Storage temperature: -45～+85℃ Relative Humidity: 5%~95 %( no condensation) |
|
Industry Standard |
FCC CFR47 Part 15,EN55022/CISPR22, Class A EMS: IEC6100-4-2 (ESD): ±8kV (contact), ±15kV (air) IEC6100-4-3 (RS): 10V/m (80MHz-2GHz) IEC6100-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV IEC6100-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV IEC6100-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz) IEC6100-4-16 (Common mode conduction): 30V (cont.), 300V (1s) IEC (EN) 61000-4-8：support IEC 60068-2-27(Shock):support IEC 60068-2-32(Freefall):support IEC 60068-2-6(Vibration）：support |
| Shell | IP40 protect grade, metal shell |
| Installation | DIN-Rail or Wall mounts |
|
Packing List |
1×Industrial PoE Switch (plus terminal block) 1×User Manual/Certificate of quality/Warranty card 1×DIN-Rail mounting kit |
|
Certification |
CE mark, commercial; FCC Part 15 Class B; VCCI Class B EN 55022 (CISPR 22), Class B |
| MTBF | 300,000 hours5 |
| Weight & Size |
Product Weight: 0.7KG Product size (L×W×H): 153mm× 115× 47mm |
| Warranty | 3-years |
4*10/100/1000 Base-Tx Non-managed PoE Fiber Switch,2* SFP slot ,Industrial , aluminum alloy, DIN Rail, DC48~57V power supply ,Wide temperature (-40°C-85°C),CE-FCC-RoHS - DC power supply is not included by default.
