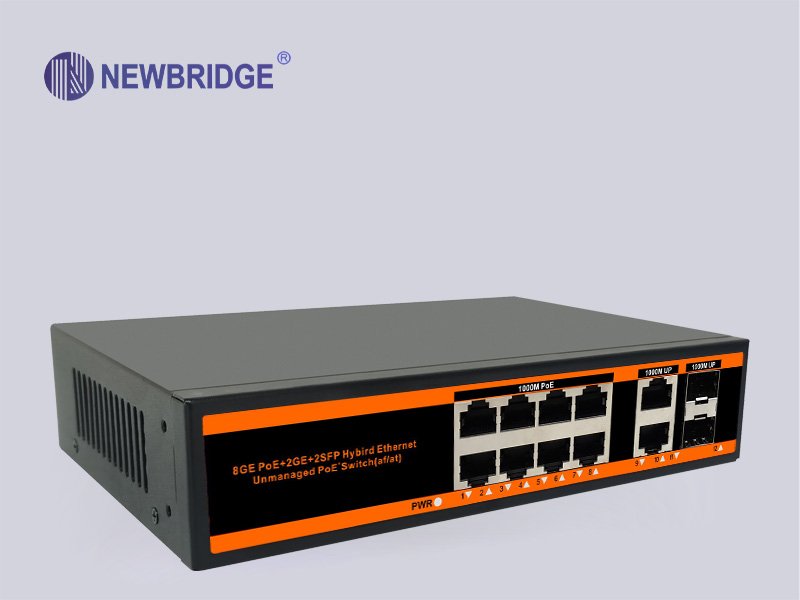

Newbridge®ND-HPG0822 series PoE switch is designed by NEWBRIDGE for meeting the demand of PoE power supply. It adopts the latest high-speed Ethernet switching chip and ultra-high backplane bandwidth design, with extremely fast data processing capability to improve smooth data transmission performance. It has 8 PoE-powered RJ45 ports, 2 RJ45 uplink ports and 2 independent SFP expansion slot. All of eight RJ45 ports support IEEE 802.3af/at standard , with a maximum power supply of 30W for a single port and 150W for the whole machine, which can automatically detect and identify the powered devices that comply with IEEE 802.3af/at standard and supply power for the priority mechanism through the network cable.
With simple and convenient installation and maintenance means and rich service features, it helps users to build a safe and reliable high-performance network. It is mainly positioned at the core or convergence layer of user networks such as industrial parks, buildings, factories and mines, government agencies, and community broadband; it can be widely used in Ethernet access scenarios such as SMEs, Internet cafes, hotels, and schools.
FEATURES
l 8*10/100/1000Mbps PoE ports, 2*10/100/1000Mbps uplink port，2*1000Mbps SFP Slot
l Support IEEE802.3af/at
l All port supported by MDI/MDIX auto flip and self-negotiation
l Built-in power supply
l Maximum power of single PoE port: 30 W
l Whole machine power: 150W
l Adopts store-and-forward architecture
l Fanless, natural cooling, small,compact and quiet design, suitable for desktop or wall
l Support lightning protection 4KV
With simple and convenient installation and maintenance means and rich service features, it helps users to build a safe and reliable high-performance network. It is mainly positioned at the core or convergence layer of user networks such as industrial parks, buildings, factories and mines, government agencies, and community broadband; it can be widely used in Ethernet access scenarios such as SMEs, Internet cafes, hotels, and schools.
FEATURES
l 8*10/100/1000Mbps PoE ports, 2*10/100/1000Mbps uplink port，2*1000Mbps SFP Slot
l Support IEEE802.3af/at
l All port supported by MDI/MDIX auto flip and self-negotiation
l Built-in power supply
l Maximum power of single PoE port: 30 W
l Whole machine power: 150W
l Adopts store-and-forward architecture
l Fanless, natural cooling, small,compact and quiet design, suitable for desktop or wall
l Support lightning protection 4KV
| Model | NDHPG0822 | ||
| Power | Power Adapter Voltage | AC 110V-240V | |
| Consumption | 150W(52V,2.3A) | ||
|
Network Connector |
Network Port |
PoE Ethernet Port | 1～8 Port : 10/100/1000Mbps |
| Ethernet port | Uplink Port : 10/100/1000Mbps | ||
| SFP Port | SFP Port: 1000Mbps | ||
|
Transmission Distance |
1～8 Port : 100/1000Mbps:0~100m | ||
| Uplink Port : 0 ~ 100m | |||
| SFP: depends on the optical module(20km...100km） | |||
| Transmission Medium | Cat5/5e/6 standard network cable | ||
|
Network Switch |
Network Standard |
IEEE802.3/802.3u, IEEE802.3x,IEEE802.ab |
|
| Switching Capacity | 24Gbps | ||
| Packet buffer memory | 1Mbits | ||
| Throughput | 17.856Mpps | ||
| MAC Table | 2K | ||
|
Paket Forwarding Rate |
10Mbps:14880pps/port 100Mbps:148800pps/port 1000Mbps:1488000pps/port |
||
|
Power Over Ethernet |
PoE Standard | IEEE 802.3af/at | |
| PoE Power Supply | End-Span(1/2+;3/6-) | ||
| PoE Power | af=15.4W,at=30W | ||
|
RJ45 port |
Port Function |
Power priority mechanism, fast and forward, MAC automatic learning and aging IEEE802.3X Full-duplex and mode and backpressure for Half-duplex mode | |
|
LED Indicator |
LED Indicator |
LINK/ACT.100Mbps;PoE Status Indicator; Power indicator;Extender | |
|
Environmental |
Working temperature | 0℃~55℃ | |
| Relative Humidity | 20~95% | ||
| Storage temperature | -20℃~70℃ | ||
|
Mechanical |
Dimension (L×W×H) | 220mm*140mm*45mm | |
| Color | Black | ||
| Weight | 1.05kg | ||
12 ports switch with 8*10/100/1000M bit PoE ports,2*10/100/1000M Uplink Port and 2*1000Mbps SFP Slot ,PoE Standard: IEEE 802.3af/at,PoE data & power transmission distance 100meters(100Mbps), 150W power supply
